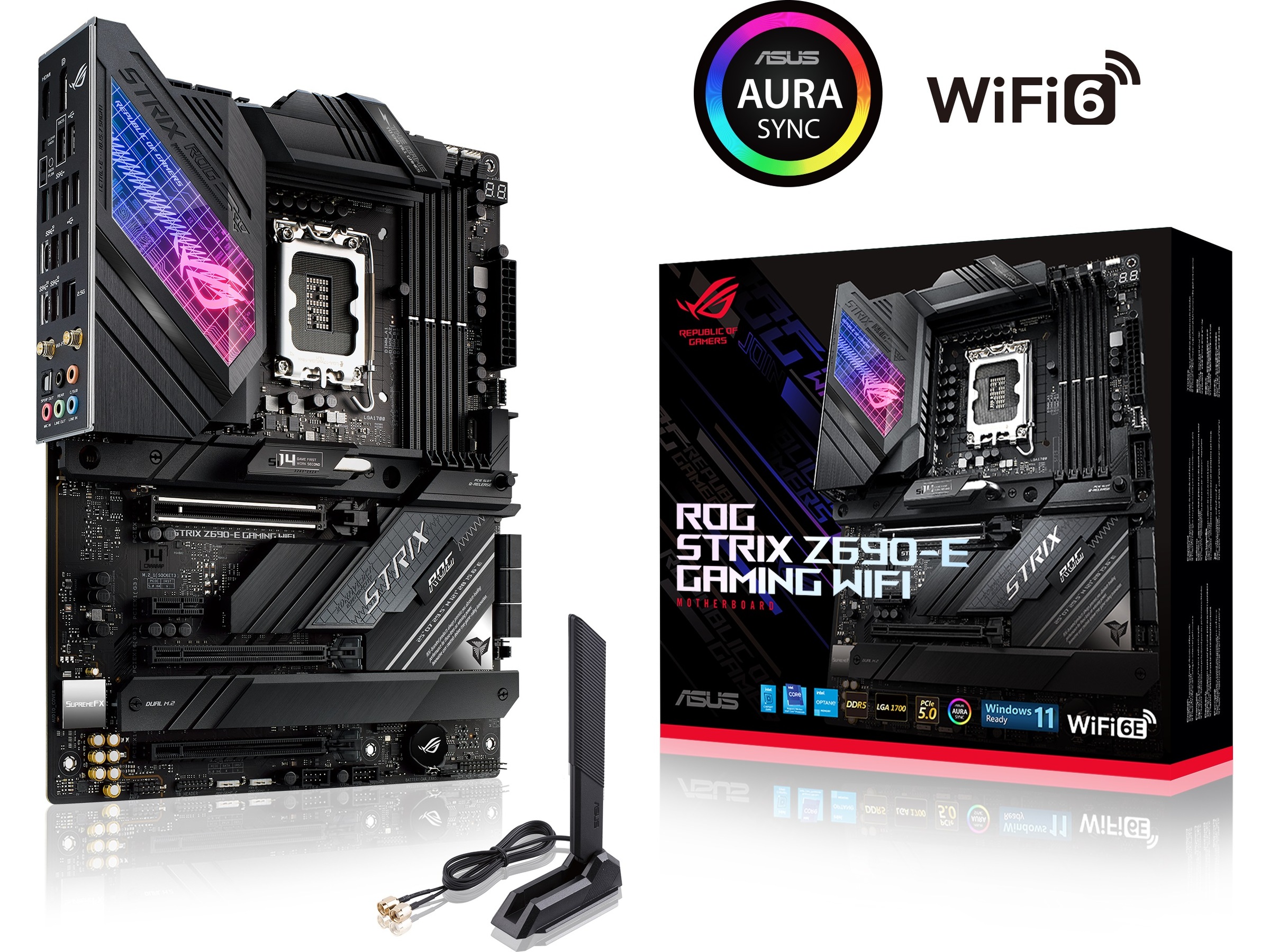

ASUS ROG STRIX Z690-E GAMING WIFI Moderkort

Name: ASUS ROG STRIX Z690-E GAMING WIFI Moderkort
Brand: ASUS
SKU: 1198163
Availability: Discontinued

Of ASUS

1 / 10

Produktinfo

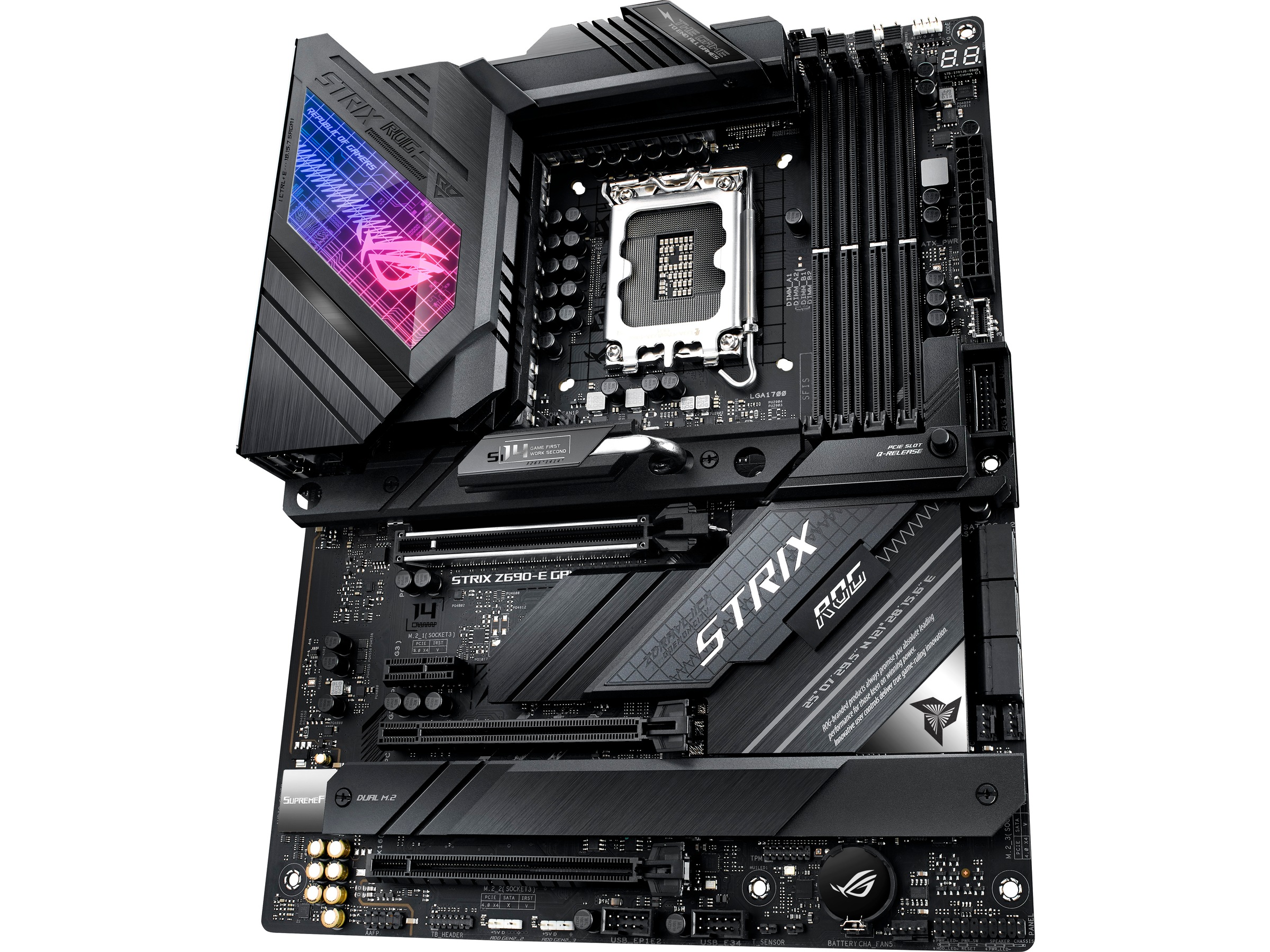

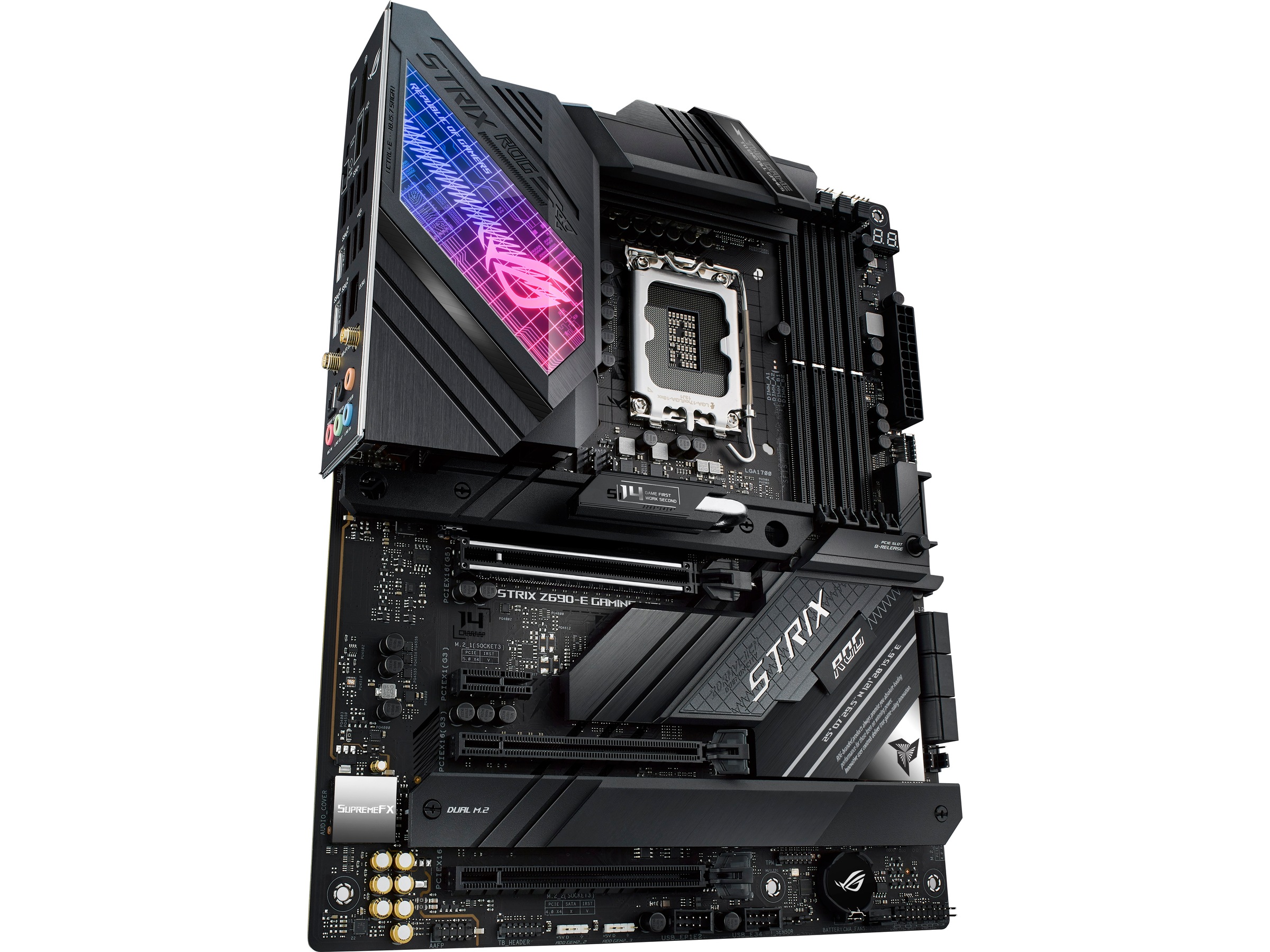

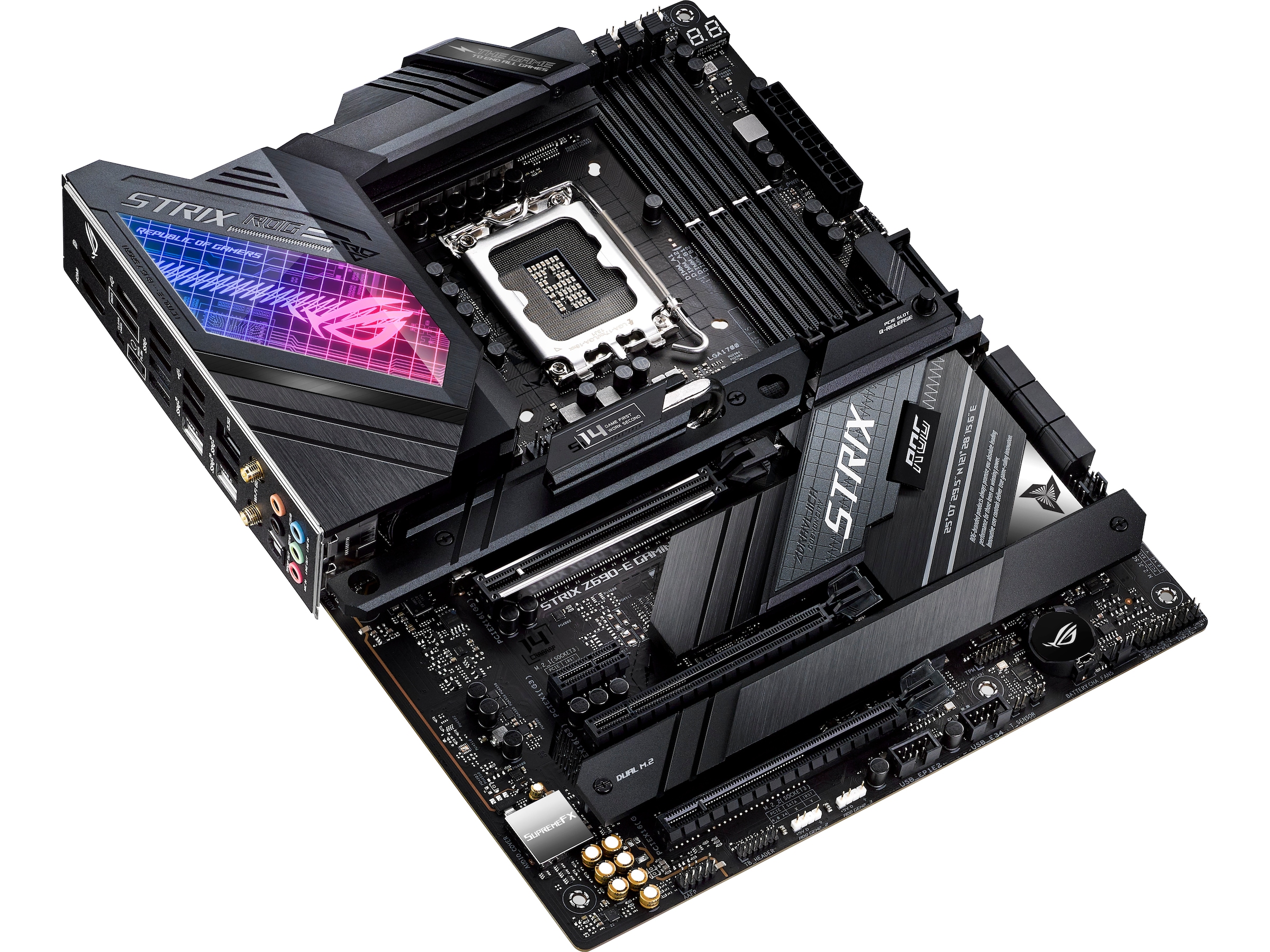

ASUS ROG STRIX Z690-E GAMING WIFI, LGA1700 Motherboard

ROG STRIX Z690-E GAMING WIFI
ROG Strix Z690-E Gaming WiFi puts 12th Gen Intel® Core™ processors at center stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.

ALL-ROUND PERFORMANCE
ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Tekniska specifikationer

Allmänt
Produktlinje	ASUS
Modell	ROG STRIX Z690-E GAMING WIFI
Producentens garanti (månader)	36
EAN	4711081494638

Moderkort
Kretstyp	Intel Z690
Kompatibla processorkommentarer	Stöder 12:e generationens Intel Core/Pentium Gold/Celeron
RAM som stöds (registrerad eller buffrad)	Ej buffrad
RAM-teknik som stöds	DDR5 SDRAM
Processor-socket	LGA1700-uttag
RAM-kortplatser	4 DIMM-kortplatser
Formfaktor	ATX
Stöder Ram Integrity Check	Icke ECC
RAM-hastighet som stöds	6200 MHz (O.C.), 5200 MHz (O.C.), 6000 MHz (O.C.), 5400 MHz (O.C.), 4800 MHz, 5000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 6400 MHz (O.C.)
Strömkontakter	2 x 8-stifts ATX12V-kontakter, 24-pin kontakt för huvudström

Moderkortegenskaper
BIOS-typ	AMI
BIOS-egenskaper	UEFI BIOS, ASUS EZ Flash 3, MemTest86, BIOS FlashBack
Hårdvaruegenskaper	ASUS Extreme Engine Digi+, Detekteringsteknik för ljudjack, ASUS ProCool II, ASUS TPU (TurboV Processing Unit), Q-LED, Gold Plated Audio Hardware, M.2 Q-Latch, ASUS HYDRANODE, LANGuard, ASUS EPU (Energy Processing Unit), ASUS SafeSlot, ASUS Aura Sync, SafeDIMM, Intel Turbo Boost-teknologi 2.0, ASUS DIGI+ VRM, FlexKey-knapp, Preboot eXecution Environment (PXE), SupremeFX Shielding-teknik, 18+1 Phase Power Design, Automatisk enhets-igenkänning, DIY Friendly Design, M.2 kylfläns, ASUS Q-Design, Q-DIMM, ASUS OptiMem II, Intel Turbo Boost Max Technology 3.0, CrashFree BIOS 3, Förmonterat I/O-skydd, Windows 11-kompatibel, Savitech SV3H712-förstärkare, Clear CMOS-knapp, ASUS EZ DIY, Q-Slot, Sonic Studio III
Viloläge/väckning	Wake on LAN (WOL), Wake on PME

Gränssnitt
RAID-egenskaper	Intel Rapid Storage Technology
USB/FireWire-portkonfiguration (aktiv)	1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagringsportar	4 x SATA-600 (RAID), 2 x SATA-600, 3 x M.2
USB/FireWire-portkonfiguration (sidhuvud)	1 x USB-C Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB/FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C Gen2
Lagring	M.2-uttag, Serial ATA-600, Serial ATA-600 (RAID)

RAM
Egenskaper	Minnesarkitektur med dubbel kanal

Videoutgång
Typ	Grafikadapter (CPU krävs)

Ljudutgång
Audio Codec	SupremeFX (ALC4080)
Ljud	High Definition Audio (8-kanalig)
Typ	Ljudkort
Standarder som följs	HD-ljud, DTS Sound Unbound

Kabeldetaljer
Medföljande kablar	4 x Seriell ATA-kabel

Diverse
Produkttyp	Moderkort
Inkluderade tillbehör	Kabelband, STRIX-märken, M.2 Q-Latch, 1 st. M.2-gummipaket, ROG VGA-hållare, ROG-nyckelring, ROG tackkort, ROG HYPER M.2 CARD, 2 x M.2-skruvar, ASUS Wi-Fi rörlig antenn

Nätverk
Datalänkprotokoll	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, Bluetooth 5.2, 2.5 Gigabit Ethernet, IEEE 802.11b, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11n, IEEE 802.11az (Wi-Fi 6E)
Nätverk	802.11a/b/g/n/ac/ax/az, 2.5 Gigabit Ethernet, Bluetooth 5.2

Expansionsuttag
Expansionskortplatser	1 x PCIe 3.0 x1, 1 x CPU, 4 x DIMM 288-stift, 1 x PCIe 4.0 x16 (x4-läge), 1 x PCIe 3.0 x16 (x4-läge), 1 x PCIe 5.0 x16

Lagringsgränssnitt
Lagringsgränssnitt	PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 2 x 7 pin seriell ATA, PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

Tillhandahållet gränssnitt

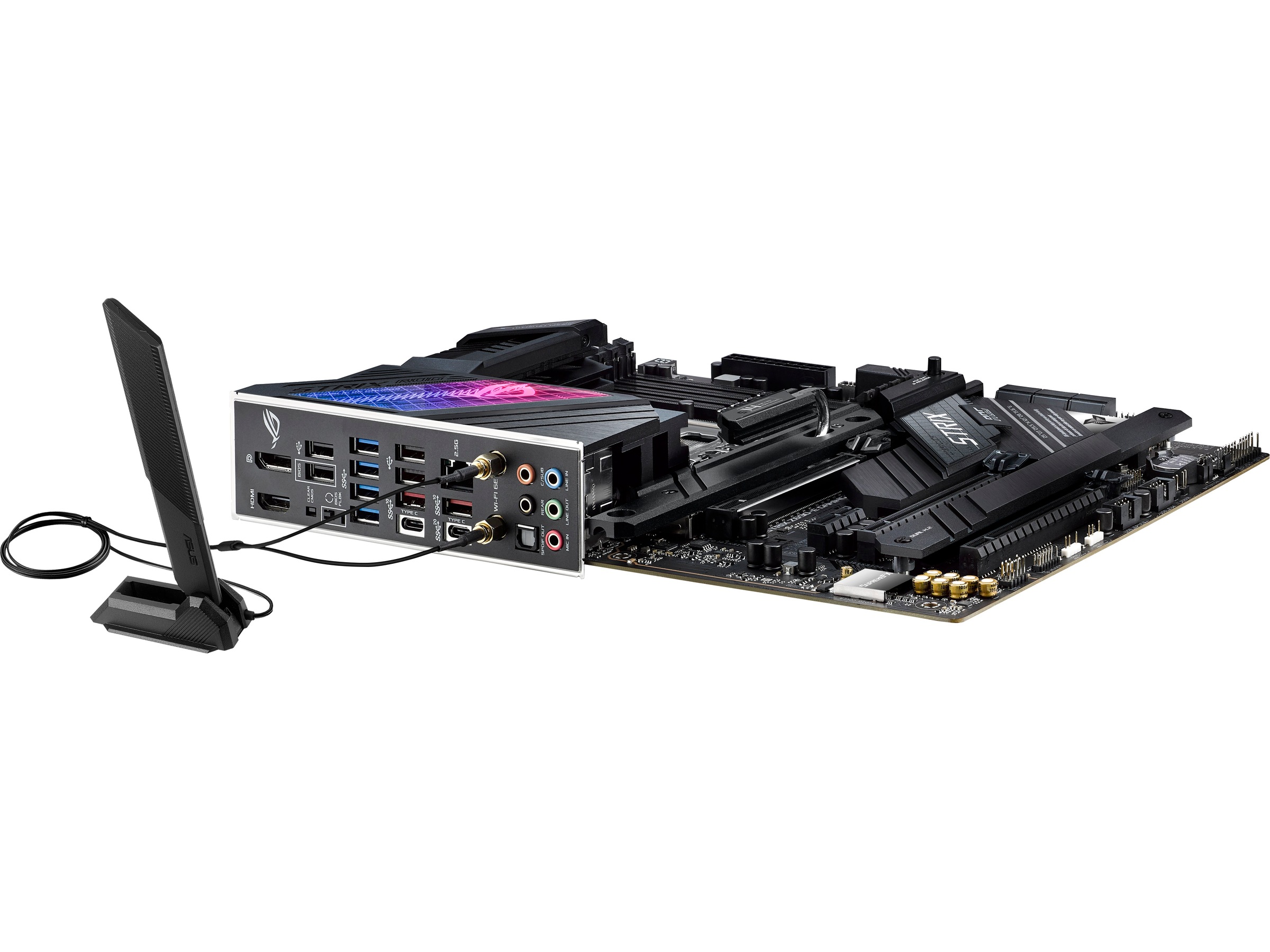

Gränssnitt	2 x USB 3.2 Gen 2, 1 x USB-C Gen2, 1 x mikrofon - mini-jack, 1 x TOSLINK, 1 x HDMI, 1 x ljudutgång - mini-jack, 1 x DisplayPort, 1 x ljudutgång (center/subwoofer) - mini-jack, 4 x USB 3.2 Gen 1, 1 x USB-C Gen2x2, 1 x ljudingång - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 1 x ljudutgång (bakre) - mini-jack, 4 x USB 2.0

Interna gränssnitt
Interna gränssnitt	1 x ljud - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x USB-C Gen 2x2 - header, 1 x Thunderbolt - header

Programvara
Programvara inkluderad	Antivirus, ROG CPU-Z, Drivrutiner och hjälpprogram, WinRAR, ROG GameFirst VI, ASUS AI Suite III, Sonic Studio Virtual Mixer, ASUS AURA Creator, MyAsus, ASUS Turbo App, AIDA64 Extreme (60 dagars testperiod)
